Sage

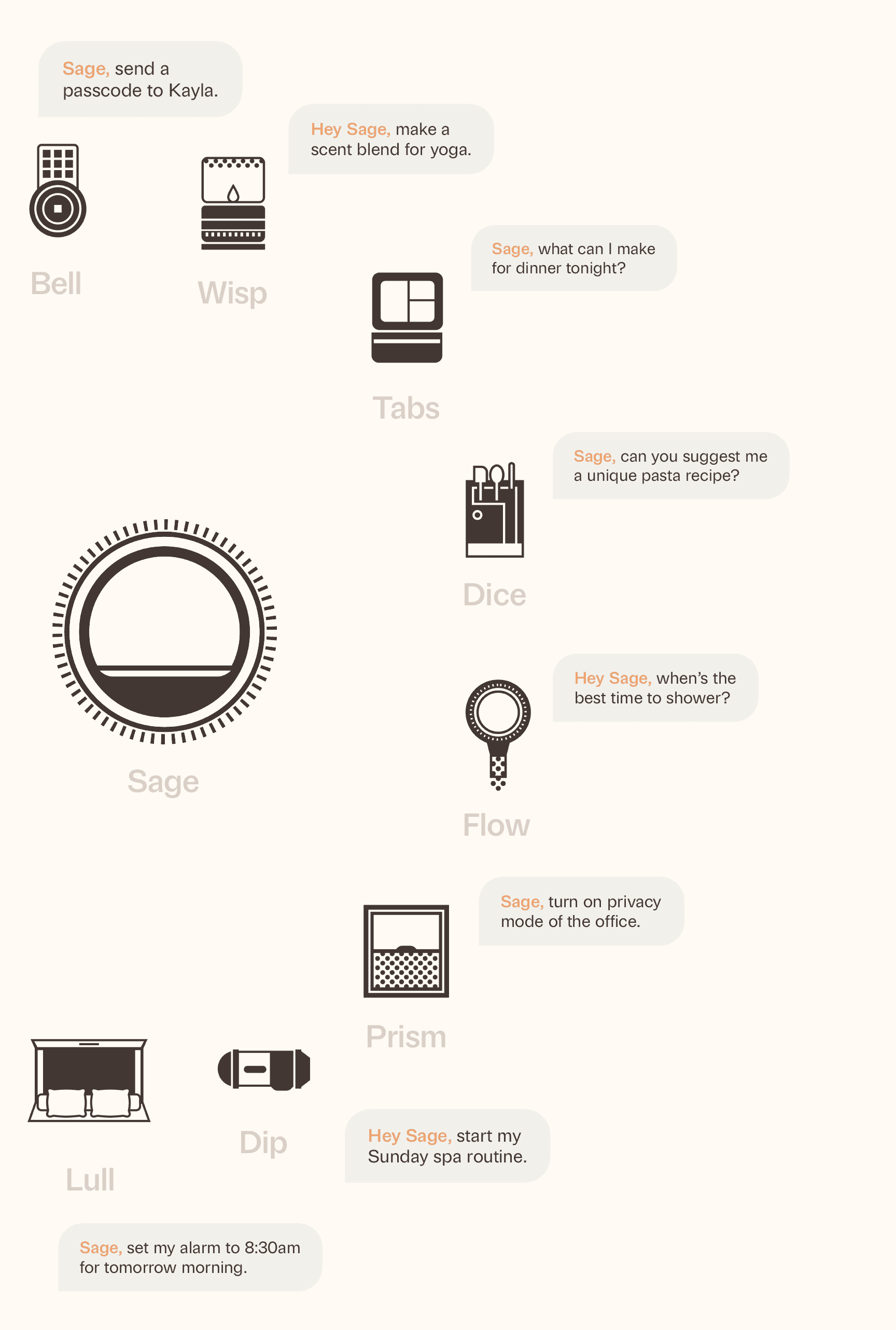

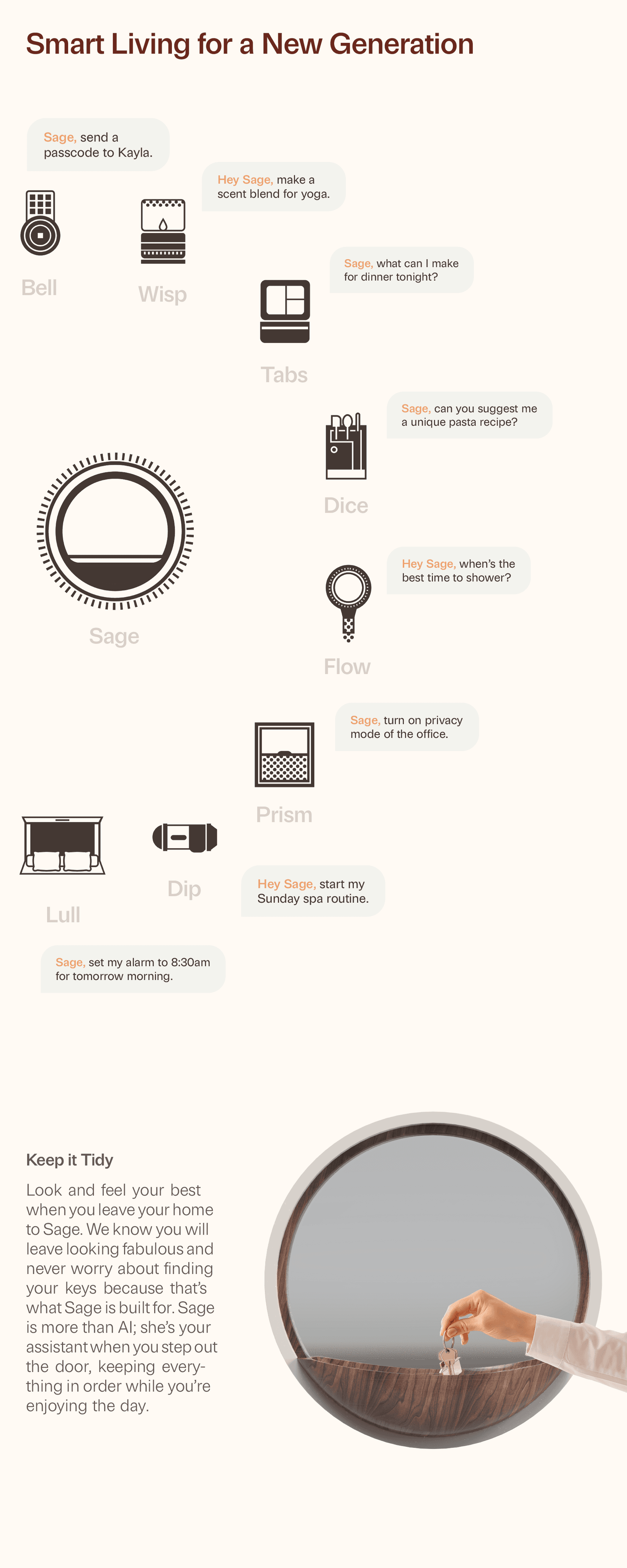

A 10 product, modular smart living ecosystem, designed for the next generation of renters. We created Sage so that you can feel at home wherever you end up.

Sage plays nice with other smart products, as it is designed with Matter, so that these products may be integrated into any existing Matter standard IOT, and vice versa.

As the Physical Production Lead, I 3D modeled, directed and completed the construction of each product with the help of my teammates.

Course

UX Senior Studio 1
UX Seniorr Studio 2

Timeline

10 weeks Research
10 weeks Design

Team

Andrew Yi
Melody Wu
Negar Khalili
Chloe Jung
Dasha Andreyeva
Hung Vinh
Gregorio Cadle
Lane Kinkade
Arya Bapat

Tools

Shapr 3D
3D printer
Keyshot
Figma
Photoshop
Illustrator
various physical production
tools & materials

Shapr 3D
3D printer
Keyshot
Figma
Photoshop
Illustrator
various physical
production tools & materials

Deliverables

10 3D models
10 scale prototypes
10 environmental displays

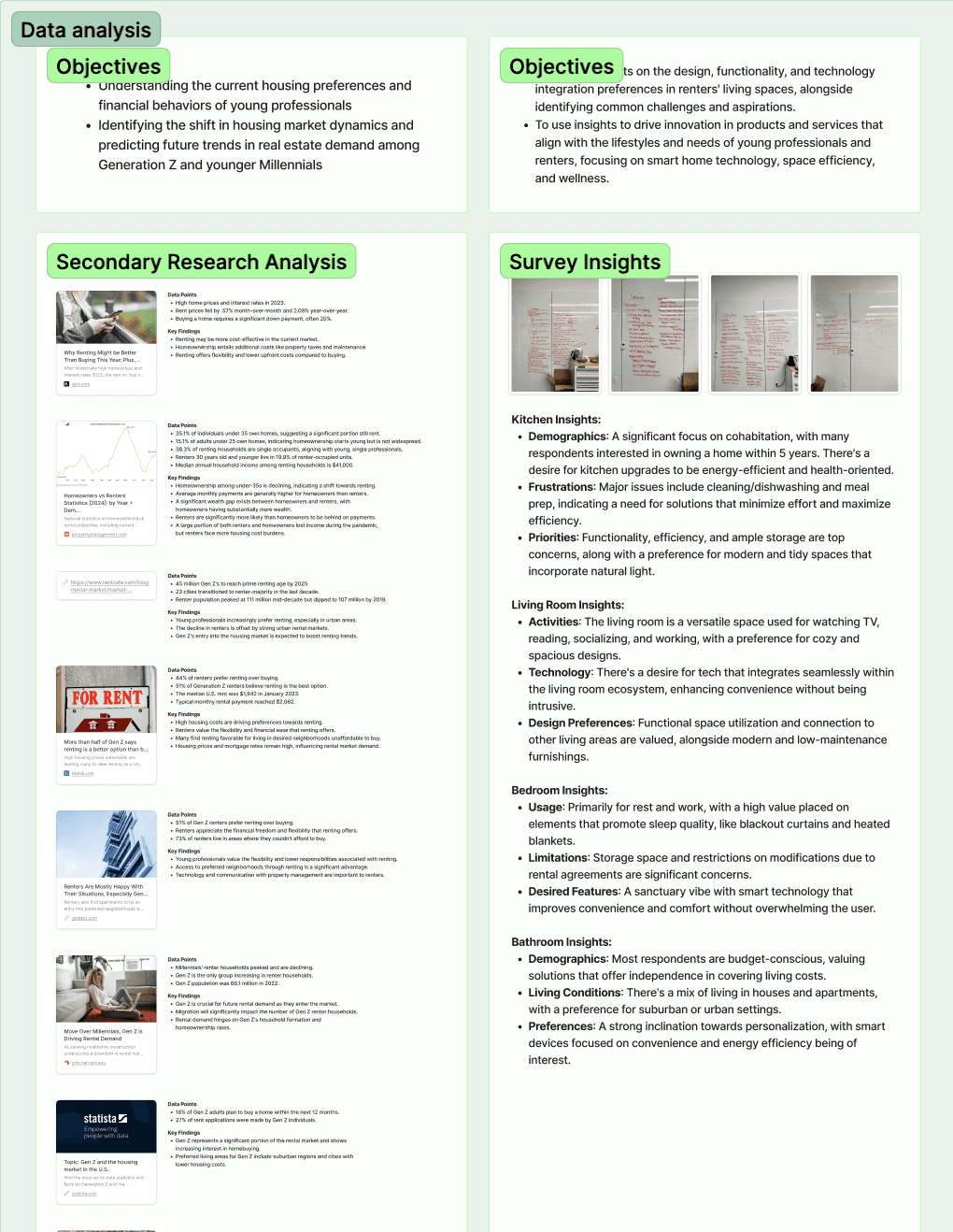

Design Planning

Market and audience research

Targeted surveys and secondary research were utilized to understand the wants and needs of next-generation renters.

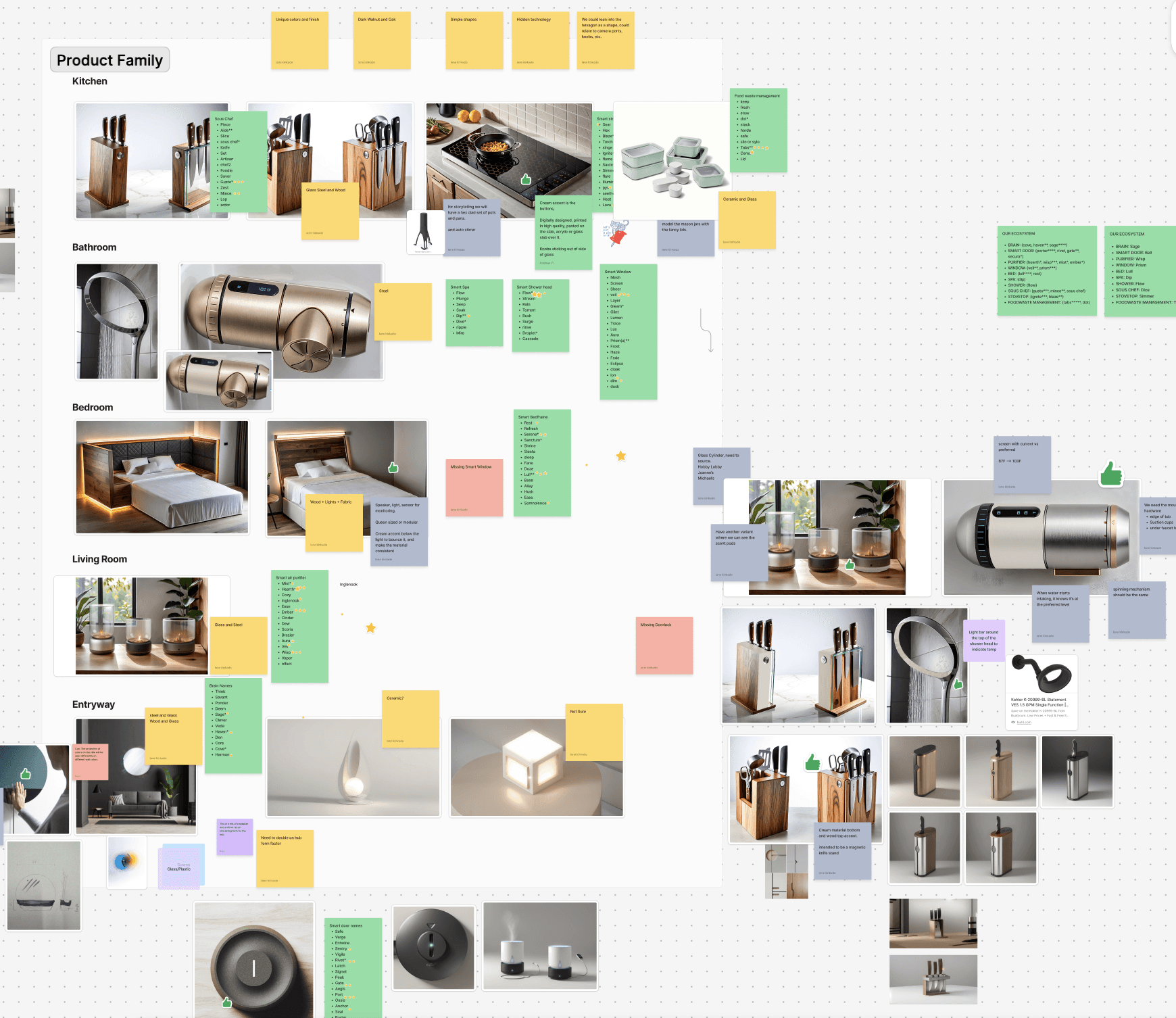

Product form & branding

Initial sketches are hand-drawn and re-rendered using AI. Form follows function, informed by our research. CMF decisions used to inform product function and family.

The Build Process - click a product to learn more

The Build Process

Sage

Smart Hub

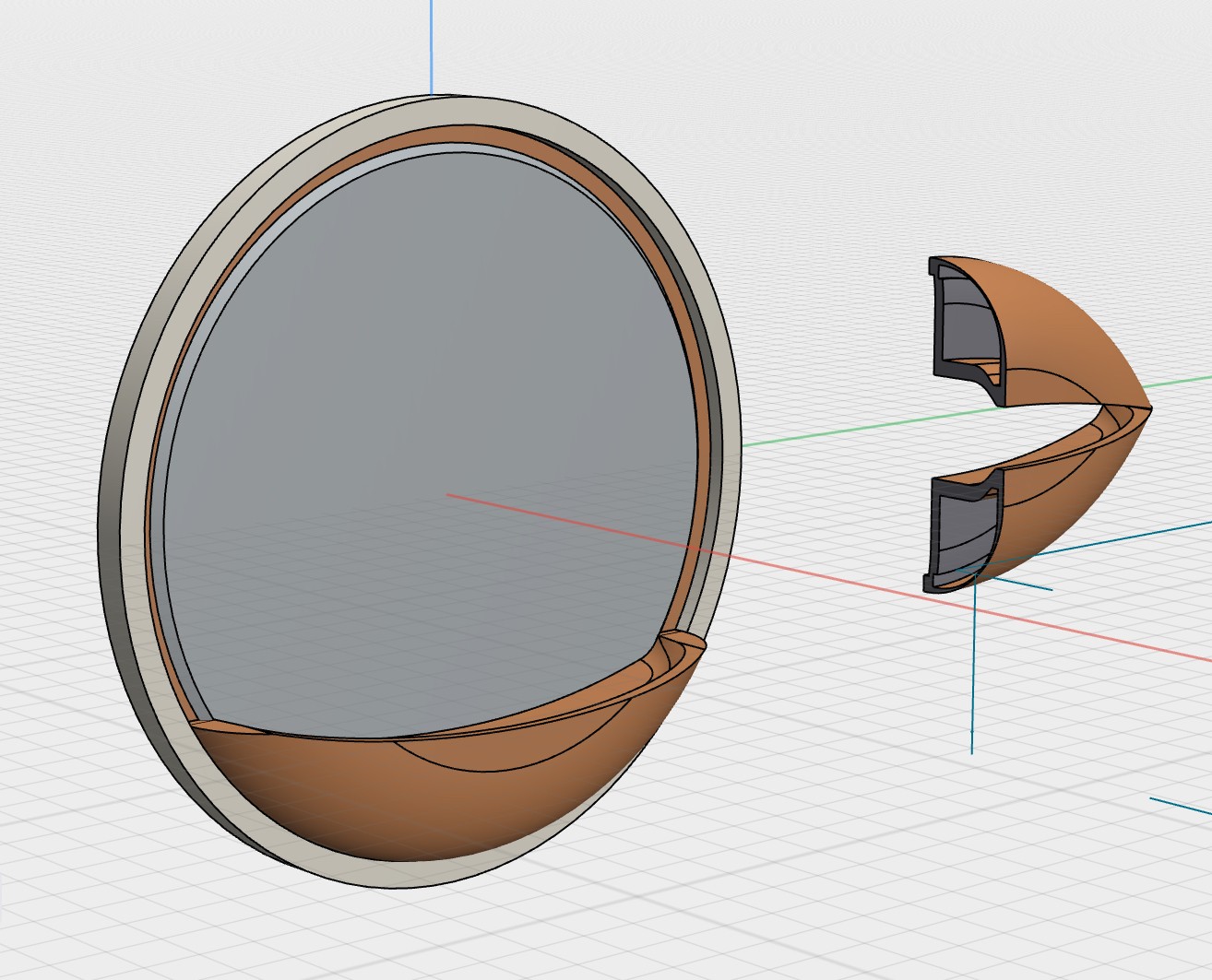

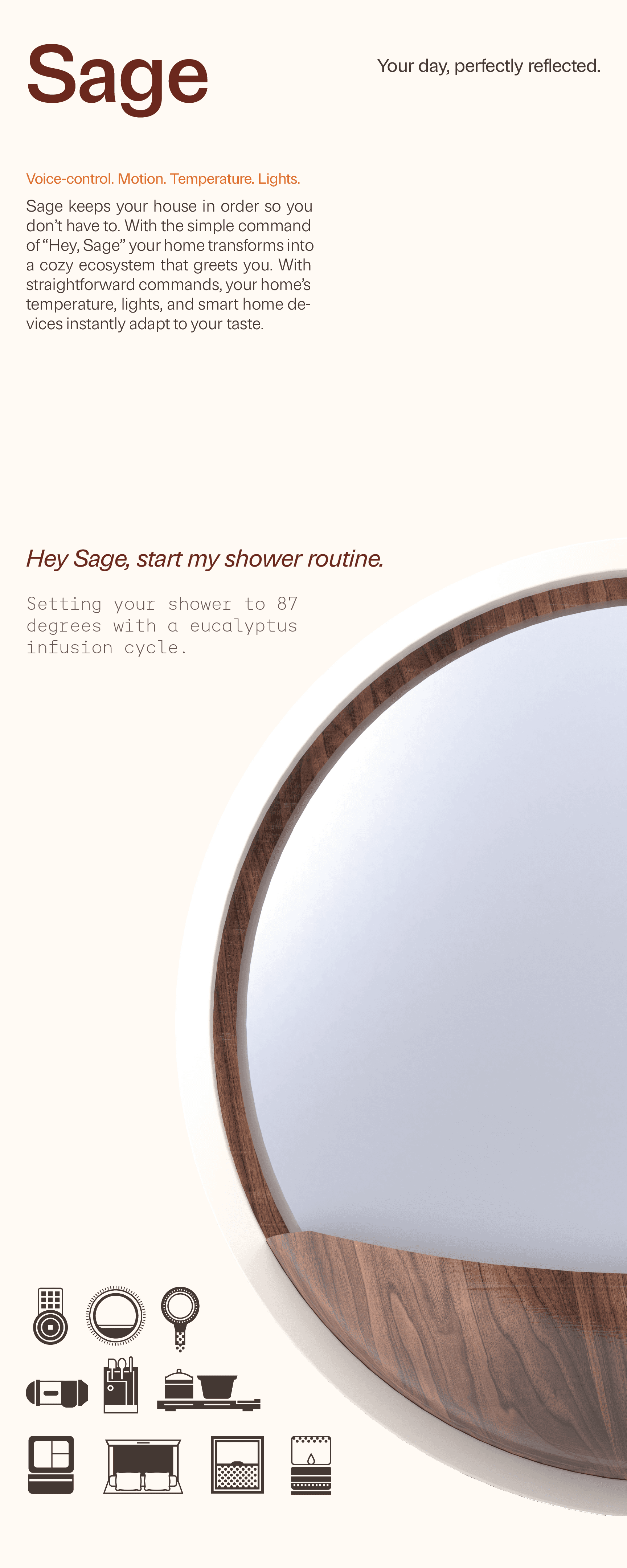

Sage is built out of an 18inch circular mirror, housed in a wooden frame, with a 3D printed bowl attatched. Each peice was prepped painted and finished by hand, and it is constructed using a combination of expoxy, wood glue and screws.

Sage

Smart Hub

Sage

Smart Hub

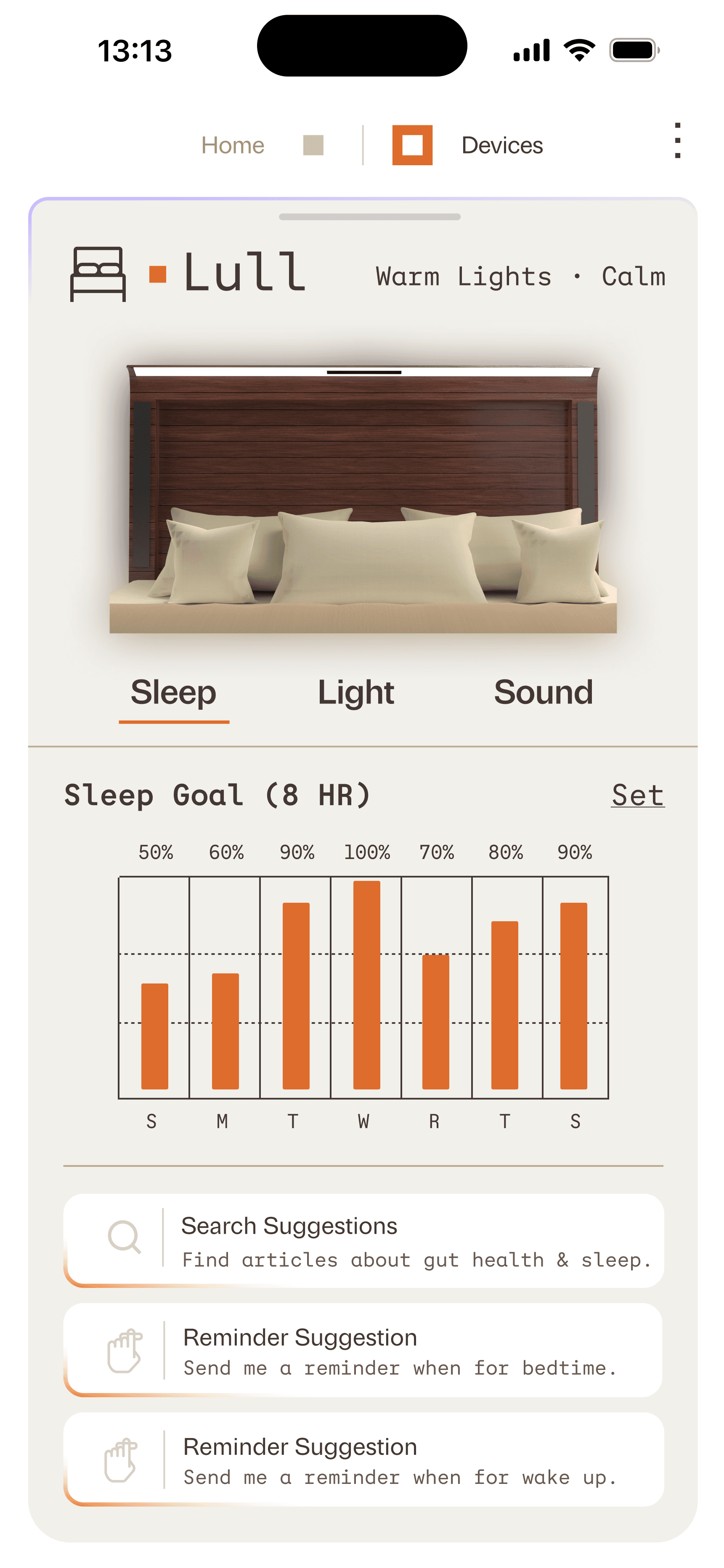

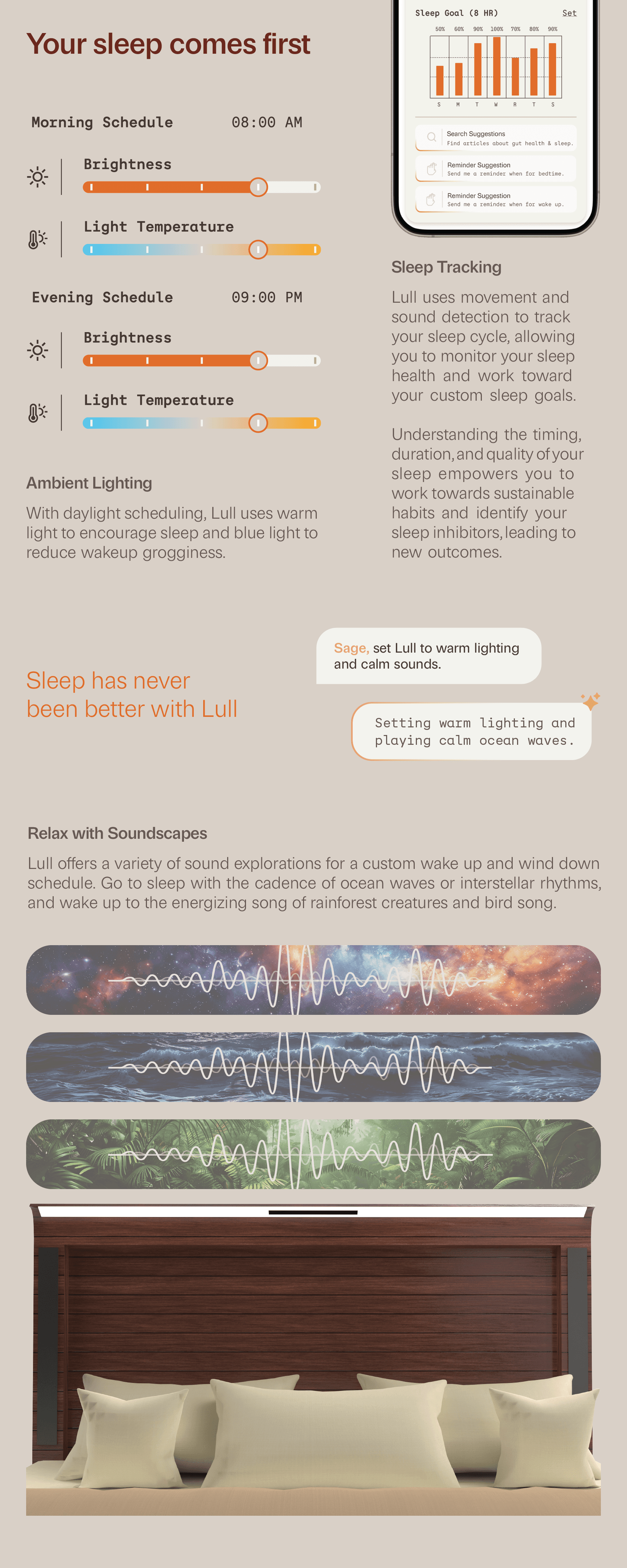

Lull

Headboard

Lull

Headboard

Lull

Headboard

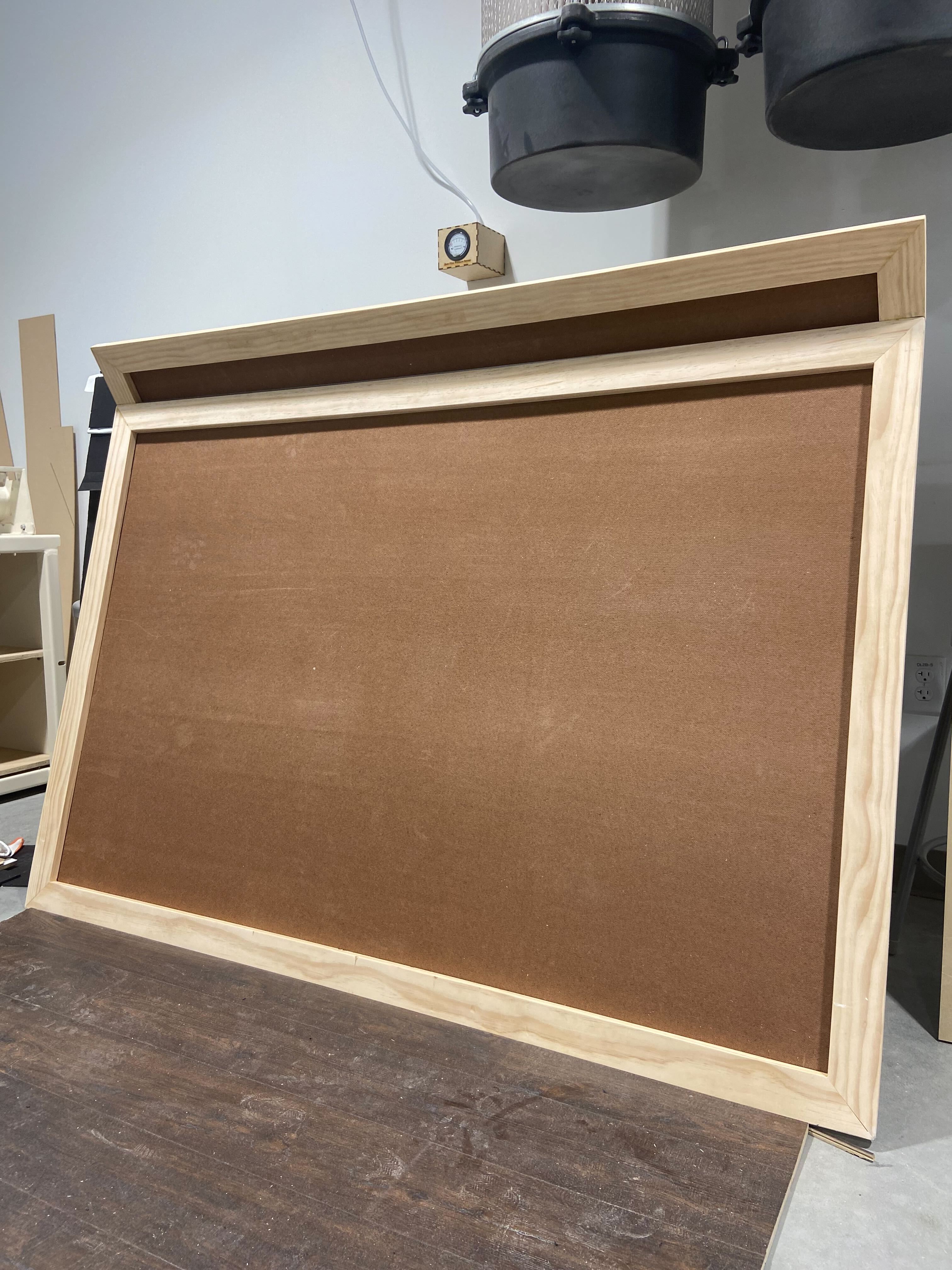

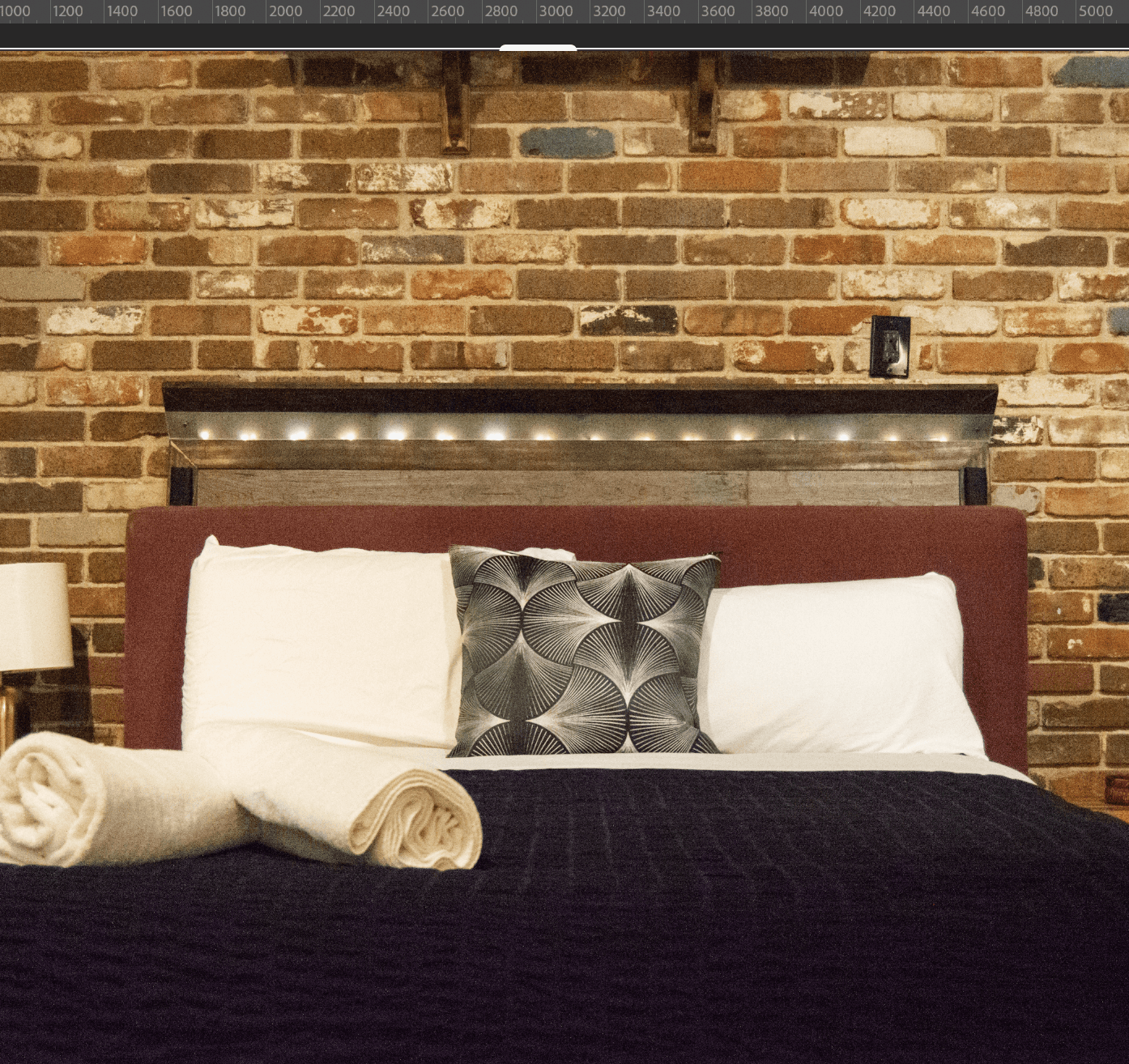

Lull was constructed using traditional wooden joinery to create a frame, in which I fitted floorboards for the large panel. On the overhang, I inlaid LED lights and an acrylic panel to diffuse them. On both sides of the frame, I used speaker mesh to represent the speakers.

Dip

Spa Solution

Dip

Spa Solution

Dip

Spa Solution

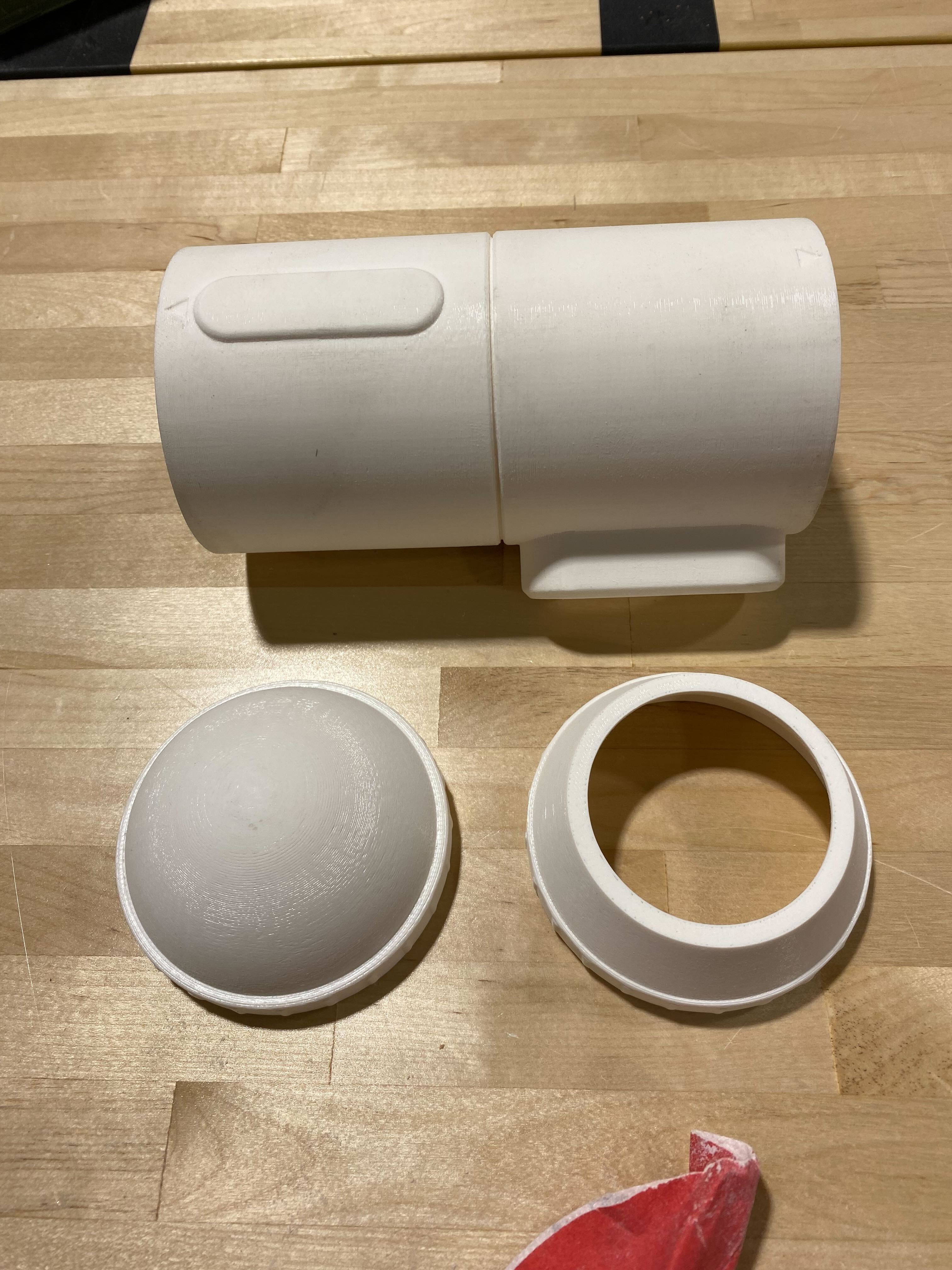

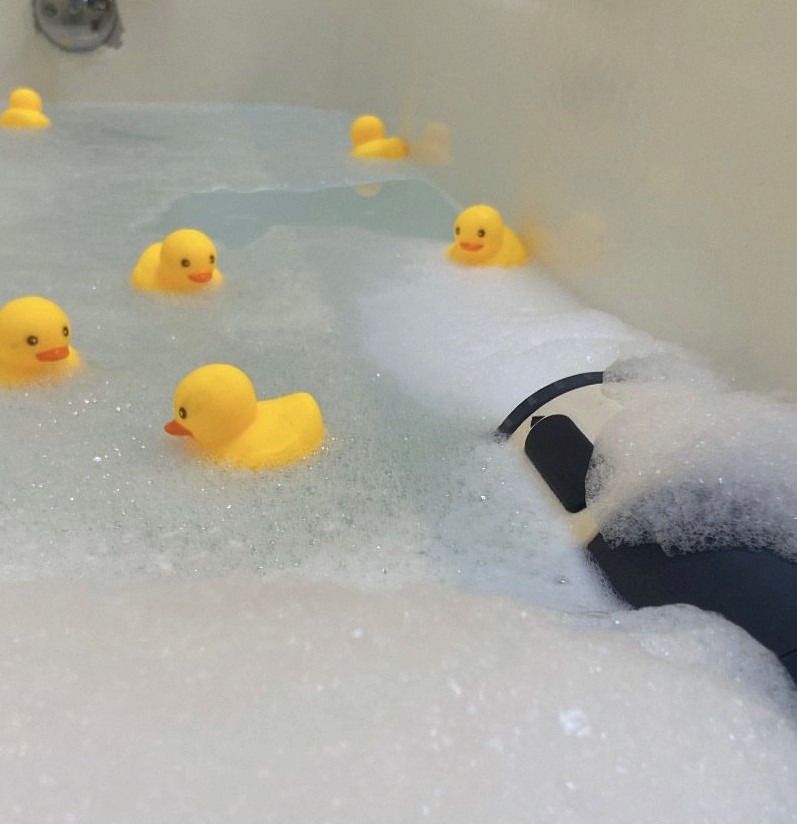

Dip is made of a 3D printed housing that I modeled to house a compact aquarium pump, Allowing the prototype to circulate water within a tub, visually representing some of the features of our product.

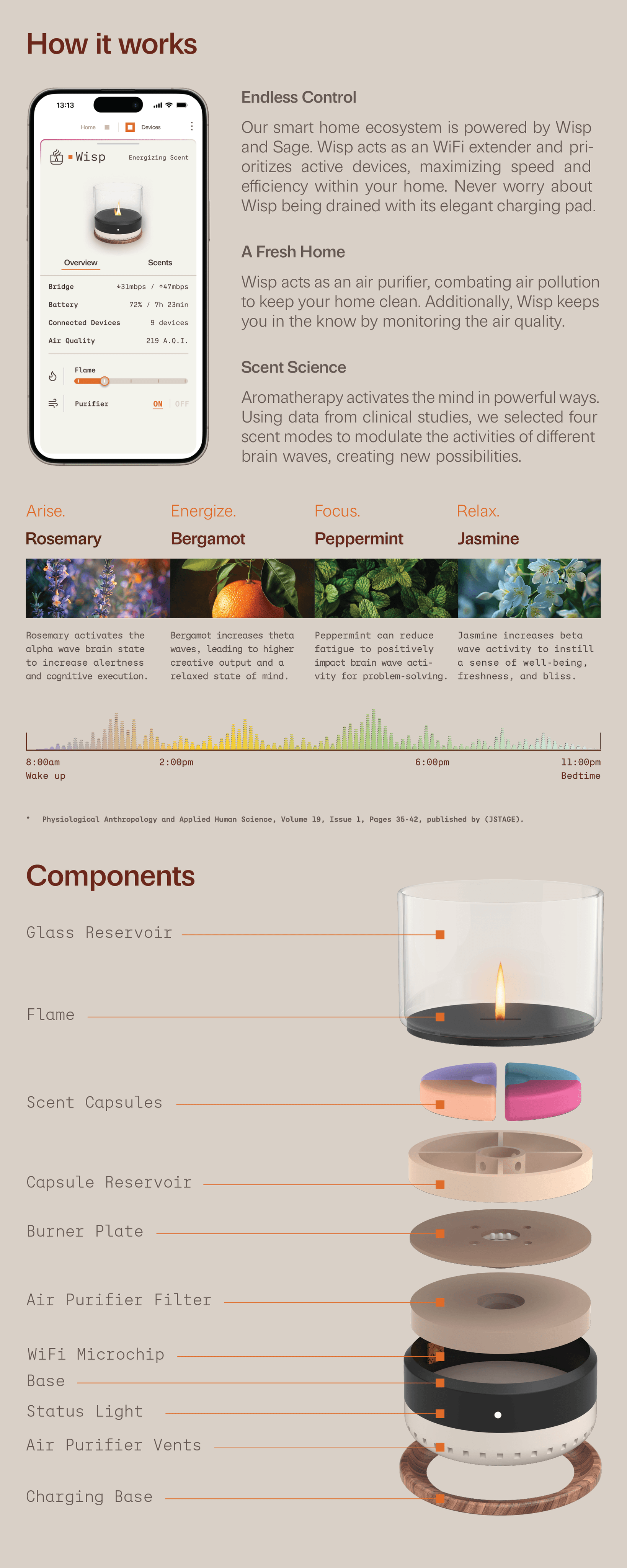

Wisp

Aromatherapy &

Air Purifier

Wisp

Aromatherapy &

Air Purifier

Wisp

Aromatherapy &

Air Purifier

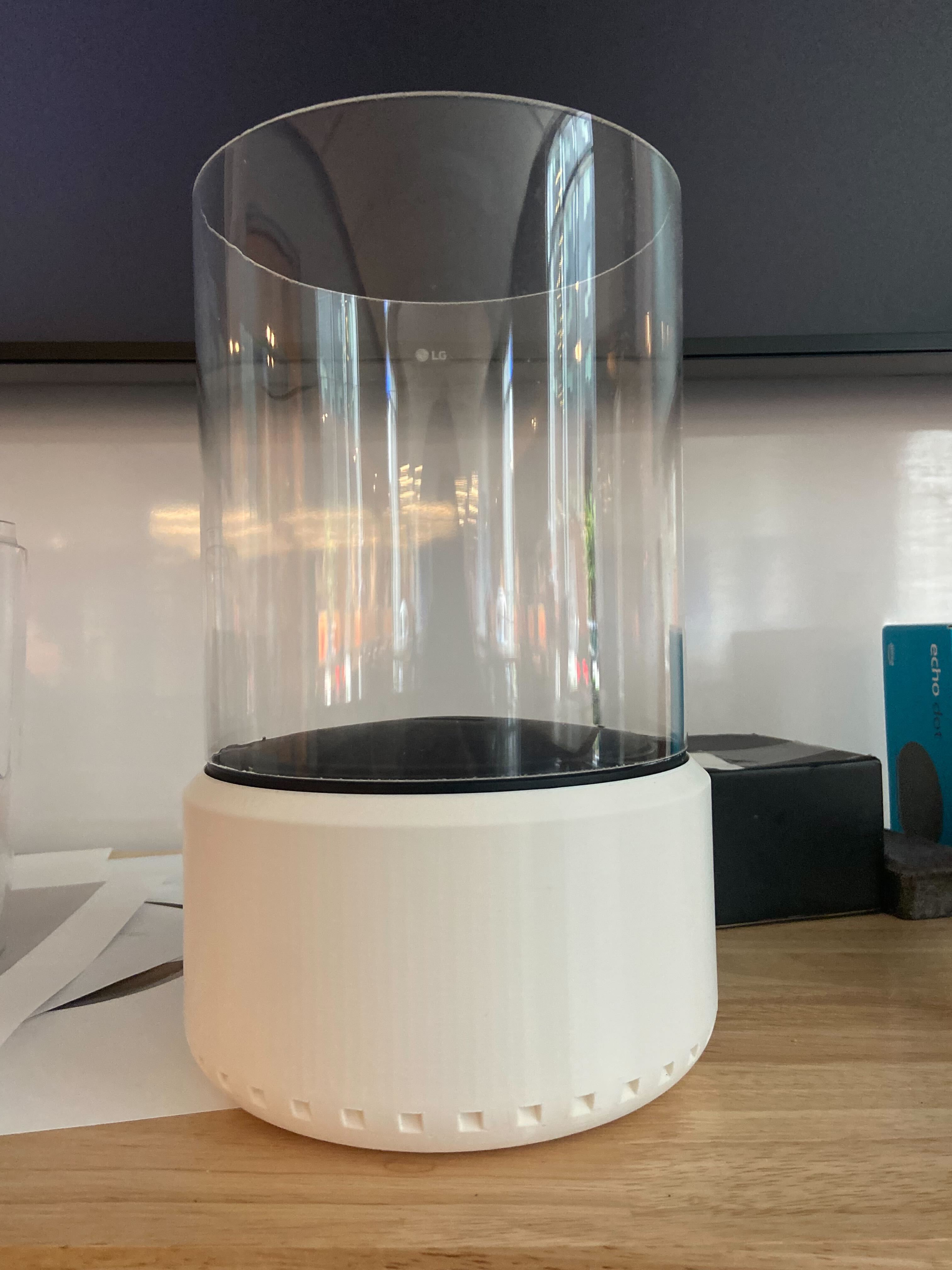

Wisp is a reconstructed air diffuser product that simulated a flame. I deconstructed the product and created a new housing for it based on a 3D model I designed.

Flow

Showerhead

Flow

Showerhead

Flow

Showerhead

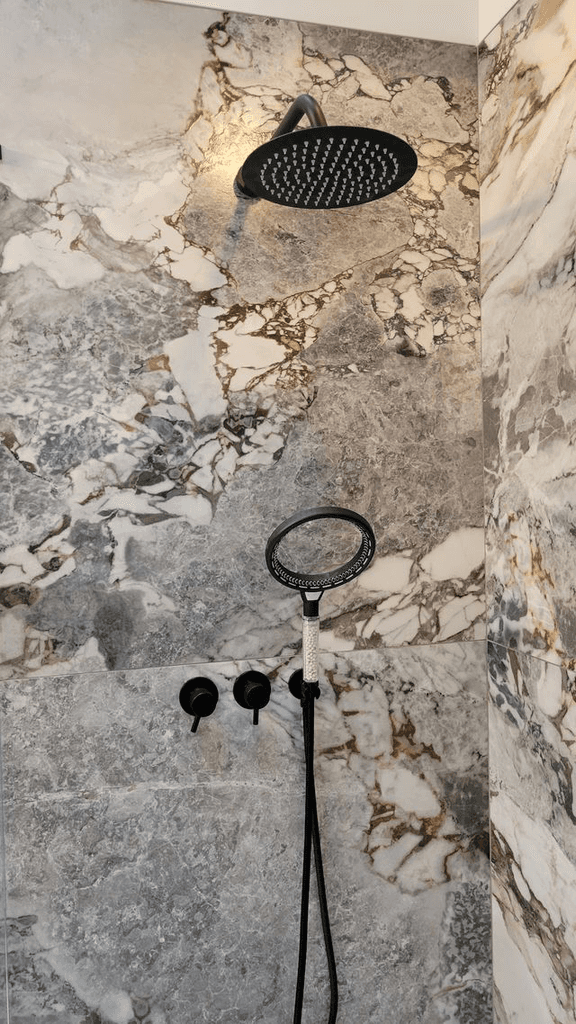

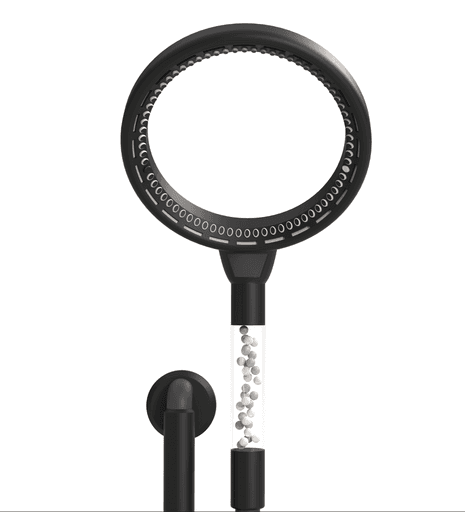

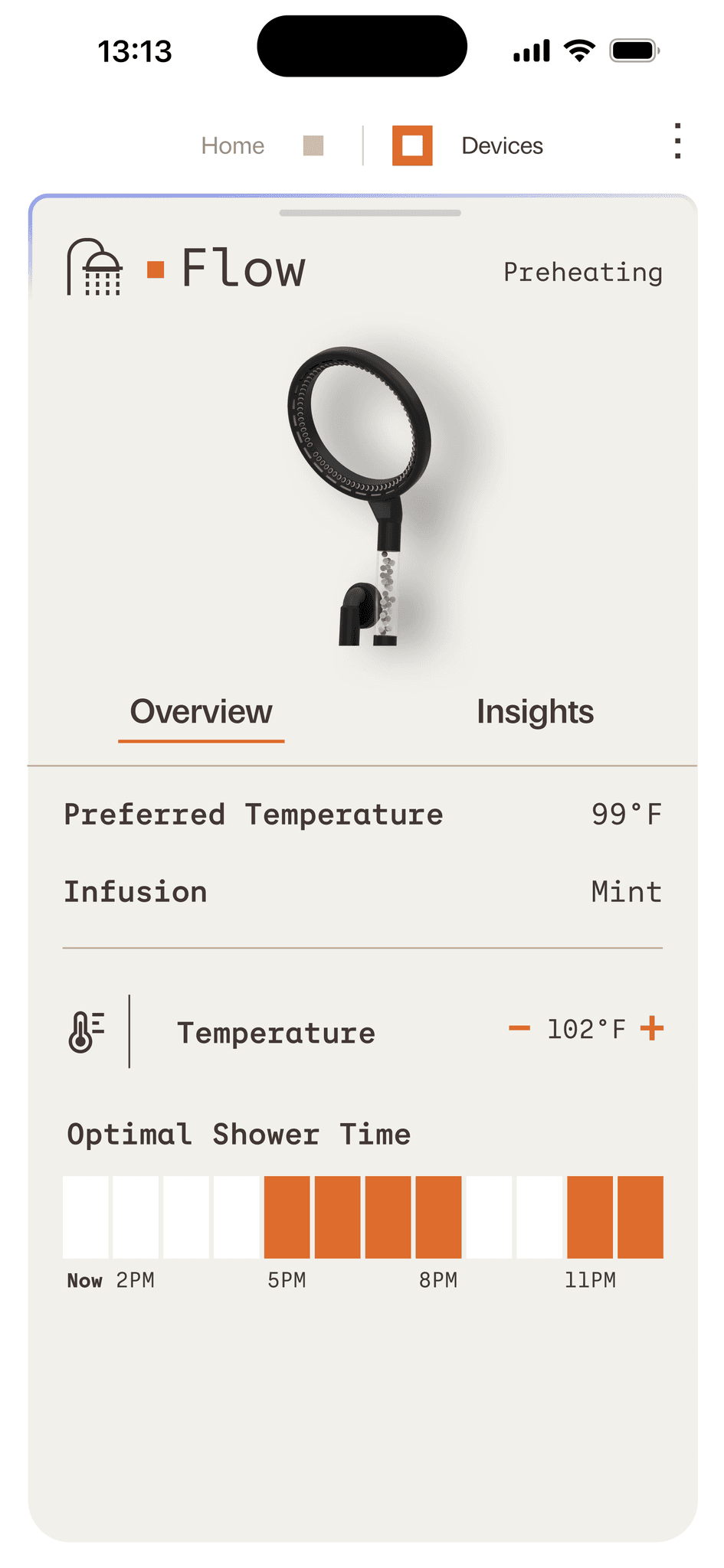

Flow is constructed from a 3D printed showerhead, attatched to standard showerhead equipment. We used BBs to simulate the water filtering system. The showerhead was painted and finished by hand.

Simmer

Adaptable Stovetop

Simmer

Adaptable Stovetop

Simmer

Adaptable Stovetop

Simmer was constructed using laser-cut acrylic panels from cross sections of a 3D model I created. Each panel was adhered to one another using a chemical weld. I then attached knobs that can actually turn

Bell

Doorbell

Bell

Doorbell

Bell

Doorbell

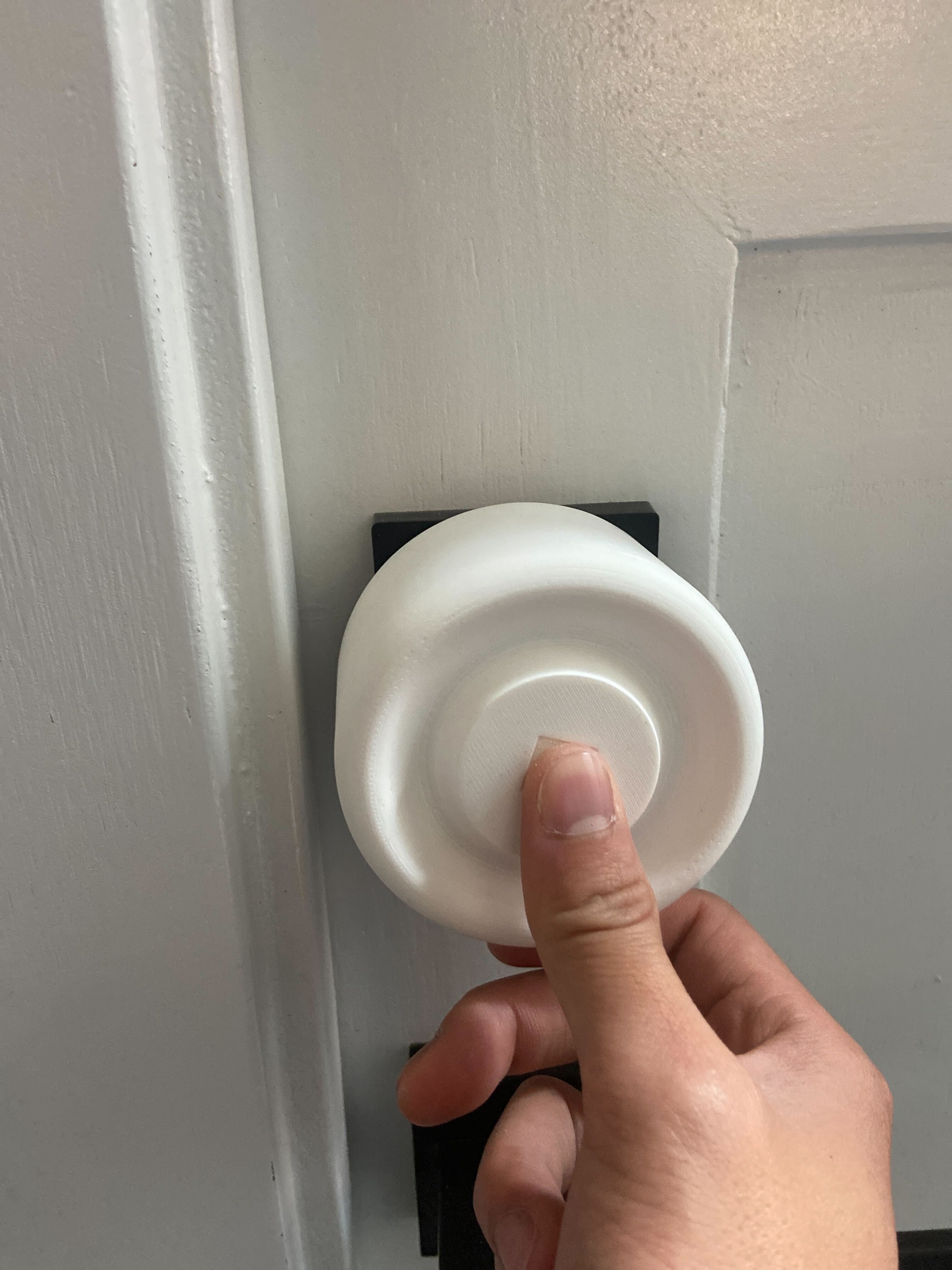

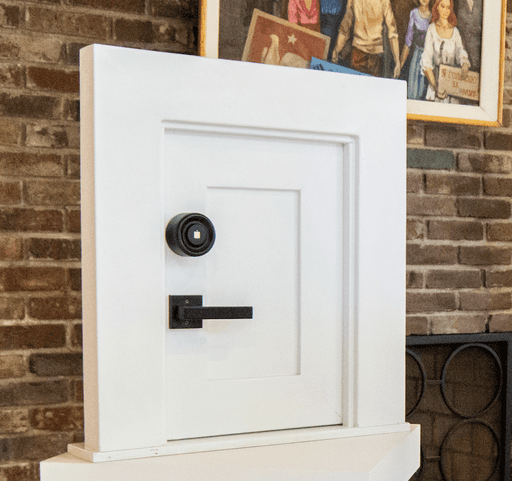

Bell is made of 3D printed peices, created to fit onto existing padlocks. It was hand painted and finished. The keypad is made of laser cut oak wood. It was attatched to a custom door frame that we outsourced the construction of.

Prism

Window

Prism

Window

Prism

Window

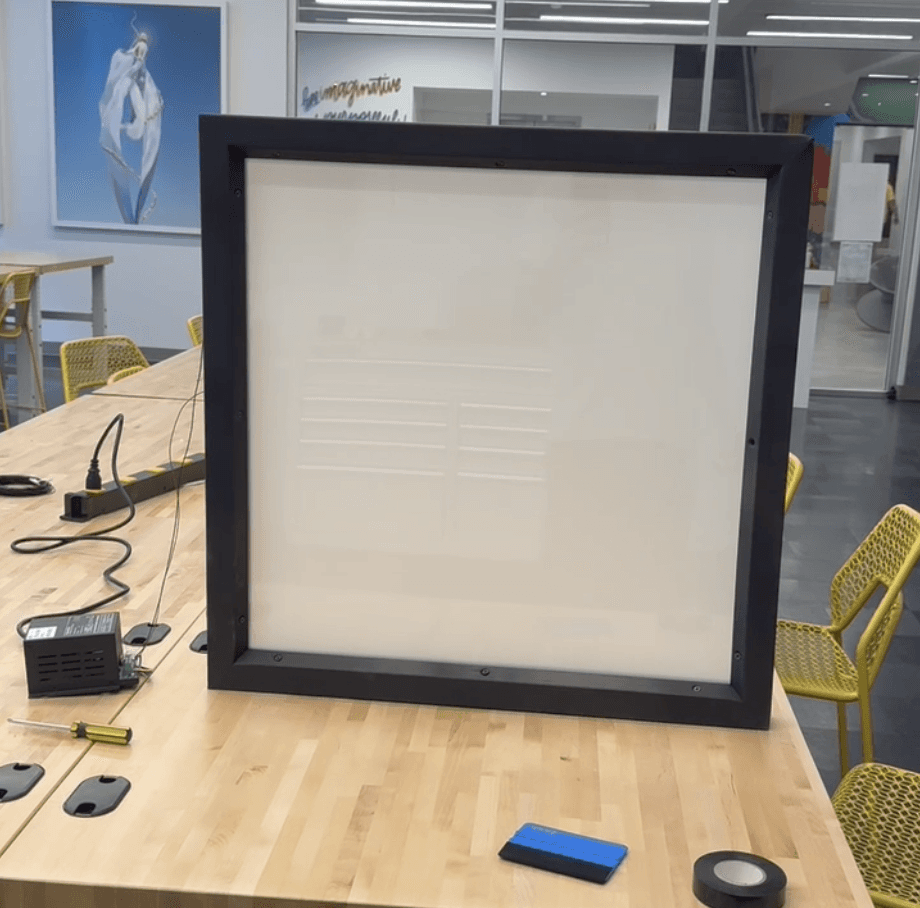

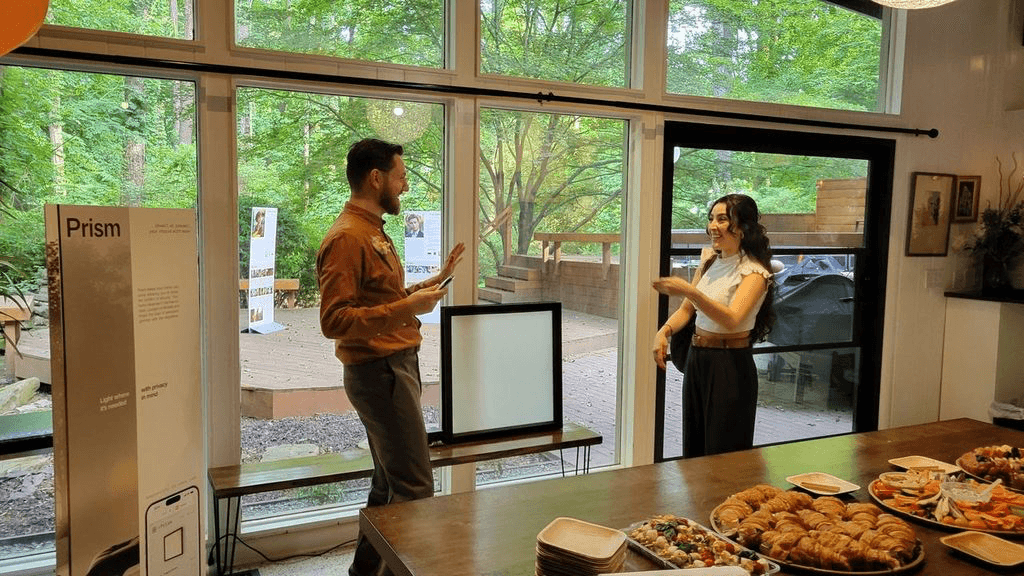

The prototype for Prisim uses an existing window film product, applied to an acrylic panel, placed inside of a window frame.

Dice

Sous Chef

Dice

Sous Chef

Dice

Sous Chef

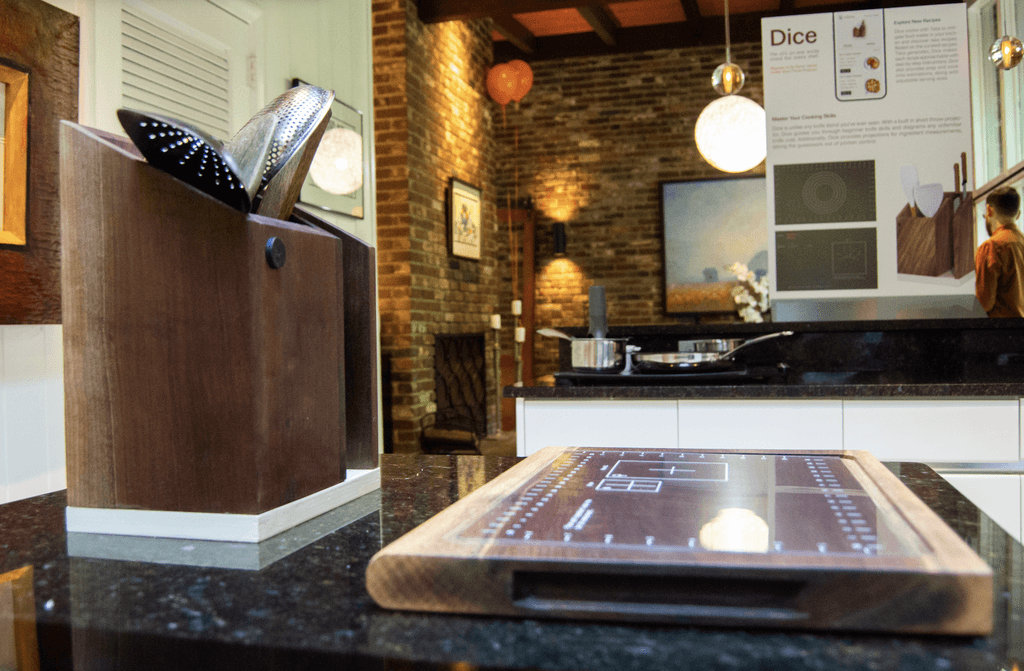

Dice was constructed using traditional wooden joinery based on a 3D model we designed. The actual construction of the main form was outsourced, then our team added a camera lens and simulated a projection using white ink on clear paper to represent the projections onto a cutting board.
